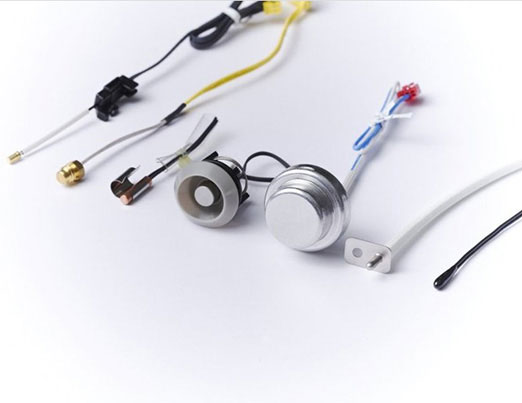

Sensor for home appliances
-

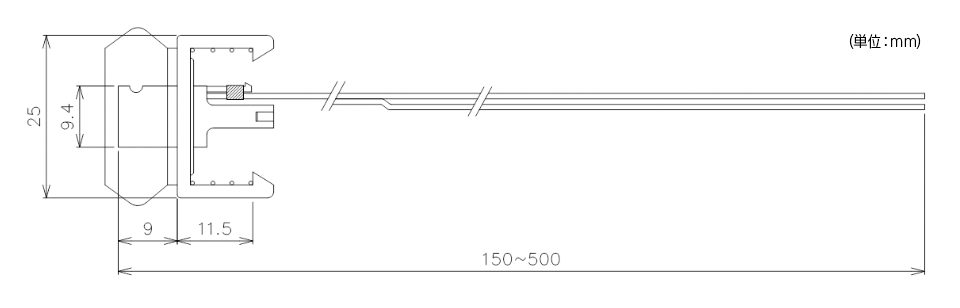

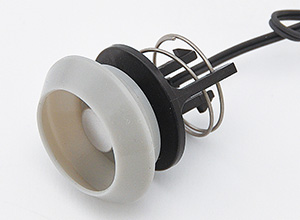

Sensor for Rice Cooker steam
Feature
- Attached to the top lid of a rice cooker, it can measure steam temperature.
- The shape and material of the protection tube can be customized according to the operating environment.
Application
Specification
Resistance value R75=13.8kΩ (example) B constant R75/100=4100K (example) Thermal time constant About 6.5 sec (Hot plate) Operating temperature range -20℃～180℃ (Protection tube and packing part only) Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1500VAC for 3sec Structures
-
-

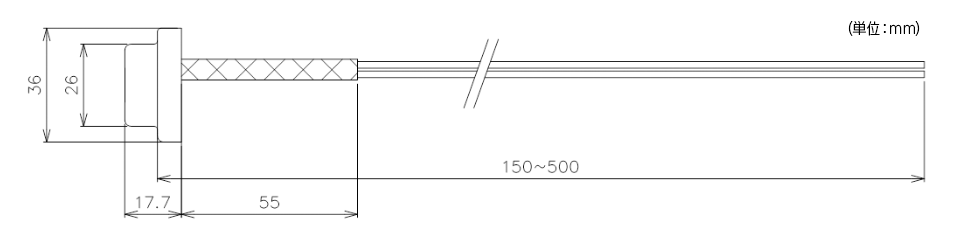

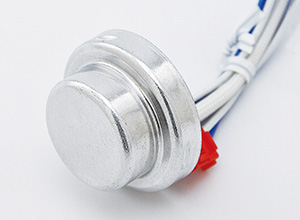

Sensor for the bottom of Rice Cooker kettle
Feature
- Measurement of the inner pot temperature is possible by attaching it to the bottom of the rice cooker and adhering it to the bottom of the inner pot.
- The shape and material of the protection tube can be customized according to the operating environment.
Application
Specification
Resistance value R100=6.282kΩ (example) B constant R75/100=4200K (example) Thermal time constant About 15 sec (Hot plate) Operating temperature range -20℃～200℃ (Protection tube only) Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1500VAC for 3sec Structures
-
-

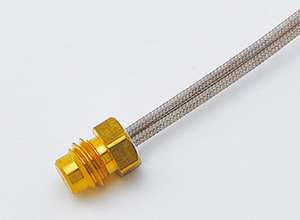

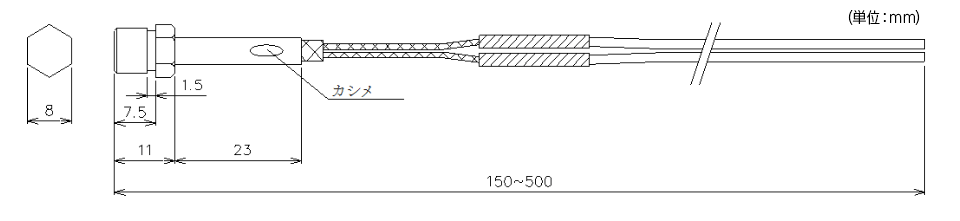

Sensor for Microwave Oven
Feature
- Easily screwed into the chamber to measure the cooking temperature
- Can be used under high temperatures
Application
Microwave Oven
Specification
Resistance value R200=1kΩ (example) B constant R100/200=4537K (example) Thermal time constant About 90 sec (in still air) Operating temperature range -20℃～260℃ Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1200VAC for 1sec Structures
-
-

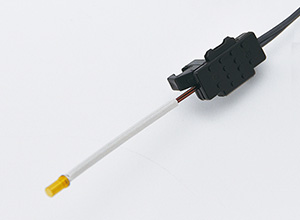

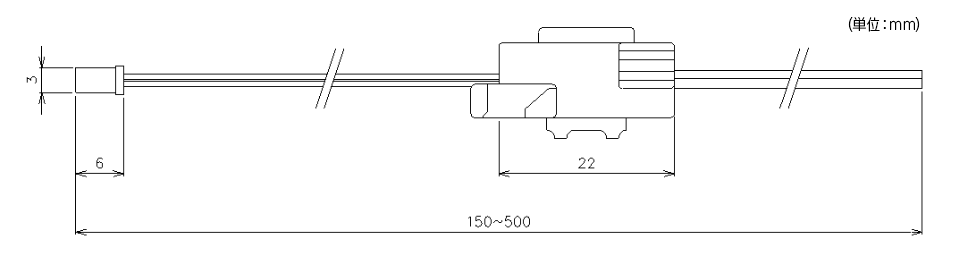

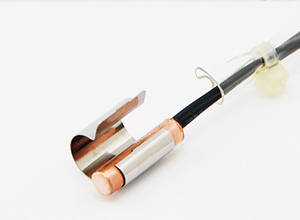

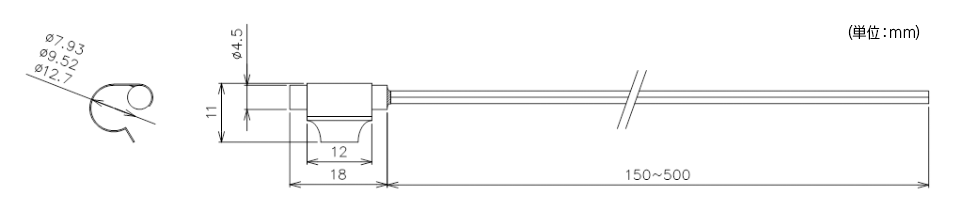

Sensor for Air conditioner
Feature
- The mounting bracket allows easy installation to the piping and measurement of the heat exchanger temperature.
- Various lineups of copper tubes and attachments.
Application
Temperature measurement of discharge pipe
Specification
Resistance value R25=50kΩ (example) B constant R25/50=3990K (example) Thermal time constant About 6 sec (in stirred water) Operating temperature range -30℃～105℃ (Protection tube and packing part only) Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1200VAC for 1sec Structures
-
-

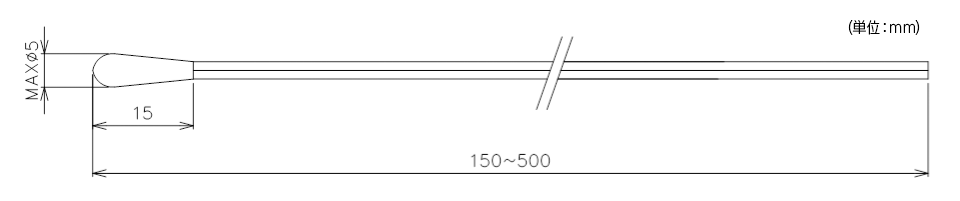

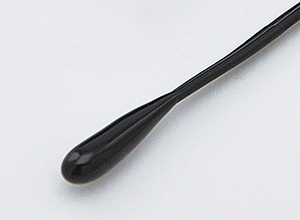

Sensor for Air conditioner
Feature
Can measure the ambient temperature at the mounting location
Application
Room temperature measurement
Specification
Resistance value R25=30kΩ (example) B constant R25/50=4500K (example) Thermal time constant About 4 sec (in water) Operating temperature range -30℃～100℃ Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1200VAC for 1sec Structures
-
-
Sensor for Fan Heater
Feature
- Embedded in a vaporizer, the temperature can be regulated
- Can be used at high temperatures
Application
Temperature control of fan heater vaporizers
Specification
Resistance value R300=25kΩ (example) B constant R250/300=5100K (example) Thermal time constant About 27 sec (in stirred oil) Operating temperature range -20℃～450℃ (Protection tube only) Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1500VAC for 3sec Structures
-
-
Sensor for Fan Heater
Feature
- Embedded in a vaporizer, the temperature can be regulated
- Can be used at high temperatures
Application
Temperature control of fan heater vaporizers
Specification
Resistance value R250=1.436kΩ (example) B constant R150/250=5050K (example) Thermal time constant About 25 sec (in still air) Operating temperature range -20℃～400℃ (Protection tube only) Insulation resistance R250=1.436kΩ ※左記以外の特性についてはご相談下さい。 B定数 ≥100MΩ at 500VDC Structures
-
