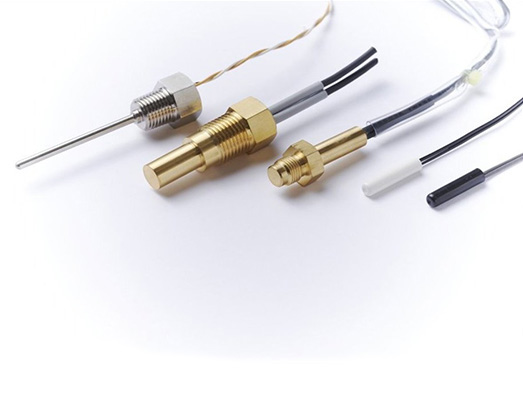

Sensor for industrial equipment
-

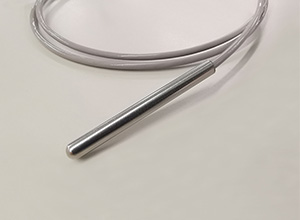

Sensor for Vaccine Storage
Feature
- Can measure up to -80℃. Suitable for temperature control such as low temperature transportation of vaccines.
- Compliant with JISC 1604-1997.
- High temperature accuracy / Class B (±0.3℃ at 0℃).
Application
- Cool box for transport of vaccine, medicines, specimen
- Low temperature freezer
Specification

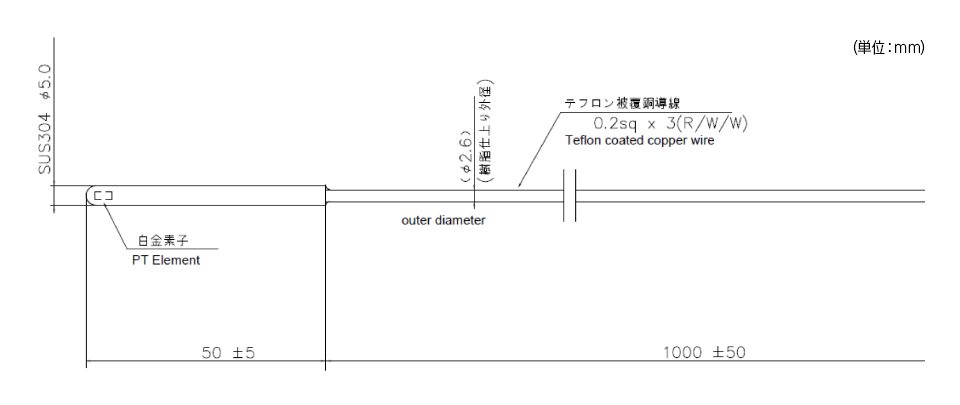

Resistance value R0=100Ω PT100 (ex.) B constant 3851ppm/K (element) Operating temperature range -80℃～50℃ Structures
-
-

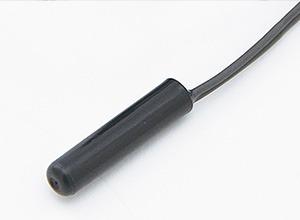

Sensor for Vending Machine
Feature
- Can be installed inside the cabinet to measure the cabinet temperature.
- Using a resin case with excellent cold resistance.
Application
Temperature measurement inside a vending machine cabinet
Specification
Resistance value R0=34.7kΩ (example) B constant R0/65=4060K (example) Thermal time constant About 9 sec (in stirring water) Operating temperature range -40℃～85℃ Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1800VAC for 1sec Structures
-
-

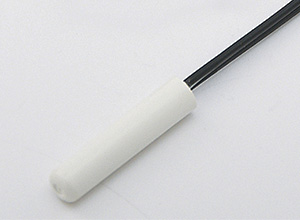

Sensor for Refrigerated Showcase
Feature
- Can be installed inside the cabinet to measure the cabinet temperature.
- Using a resin case with excellent cold resistance.
Application
Temperature measurement inside refrigerated showcases
Specification

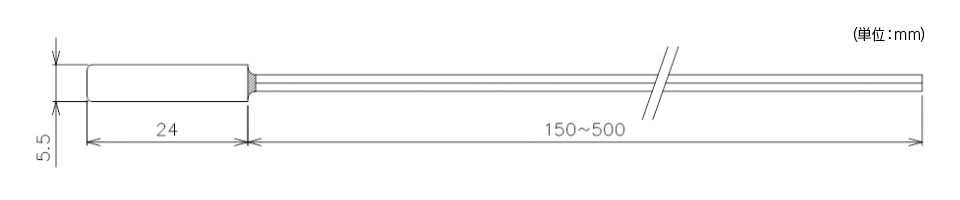

Resistance value R70=7.899kΩ (example) B constant R60/85=4251K (example) Thermal time constant About 18 sec (in stirring water) Operating temperature range -30℃～150℃ Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1800VAC for 1sec Structures
-
-

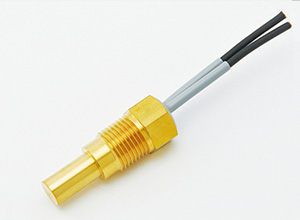

Sensor for Construction Machinery
Feature
- Suitable for measuring oil or water temperature of construction machinery.
- Vibration-resistant structure.
- Excellent moisture resistance.
Application
Oil temperature measurement of construction machinery
Specification

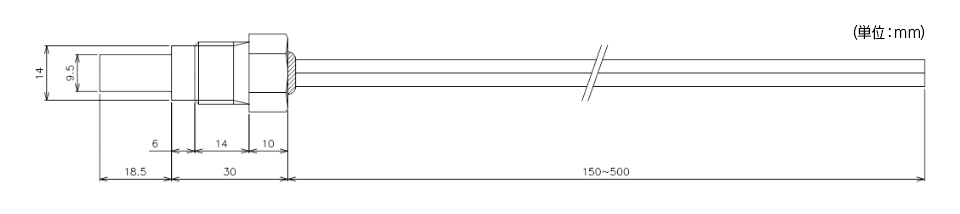

Resistance value R100=3.619kΩ (example) B constant R0/100=3570K (example) Thermal time constant About 15 sec (in stirring water) Operating temperature range -50℃～150℃ Insulation resistance ≥100MΩ at 500VDC Withstand voltage 500VAC for 1min Structures
-
-

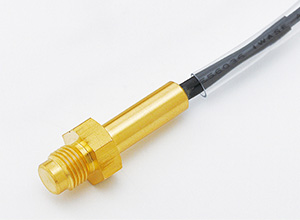

Sensor for GHP compressor
Feature
- Can measure compressor discharge temperature.
- Compact and vibration-resistant structure.
- Excellent reproducibility and stability.
Application
Abnormal compressor discharge temperature detection
Specification

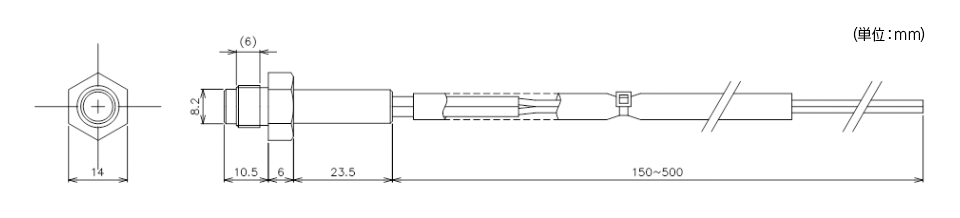

Resistance value R150=10.57kΩ (example) B constant R100/200=4700K (example) Thermal time constant About 10 sec (in stirring water) Operating temperature range -30℃～150℃ Insulation resistance ≥100MΩ at 500VDC Withstand voltage 1000VAC for 1min 構造
＜材質＞ 感熱部：真鍮（C3604BD） 電線：架橋ポリエチレン電線 -
-

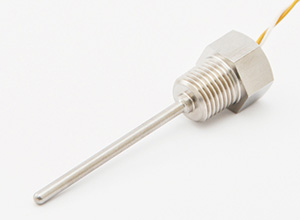

Sensor for GHP compressor
Feature
- Can measure compressor discharge temperature.
- Corrosion-resistant and durable stainless steel protection tube.
Application
Abnormal compressor discharge temperature detection
Specification

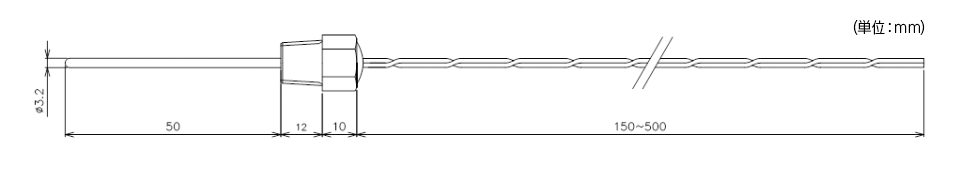

Resistance value R150=10.57kΩ (example) B constant R100/200=4700K (example) Thermal time constant About 7 sec (in stirring water) Operating temperature range 0℃～230℃ Insulation resistance ≥100MΩ at 500VDC Withstand voltage 500VAC for 1min Structures
-
