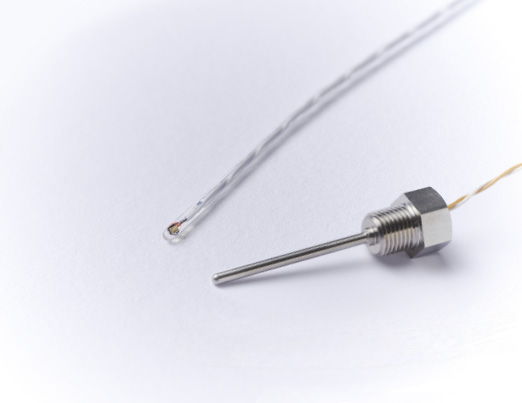

Sensor for instrumental analysis

  • Sensor for instrumental analysis

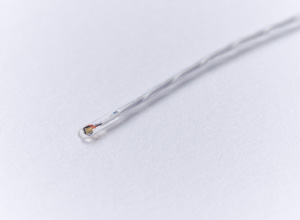

  • Catheter type sensor

    • Catheter type sensor

    Feature

    - Φ1 Thermistor encapsulated at the end of FEP wire.
    - Excellent water resistance due to mold fusion process.
    - Excellent chemical resistance due to fluoroplastic properties.

    Application

    Temperature measurement function of analyzers

    Specification

    Resistance value Contact us
    B constant Contact us
    Thermal time constant About 0.7 sec (in stirring water)
    Operating temperature range 0℃～50℃
    Insulation resistance ≥100MΩ at 500VDC
    Withstand voltage 750VAC for 1sec
