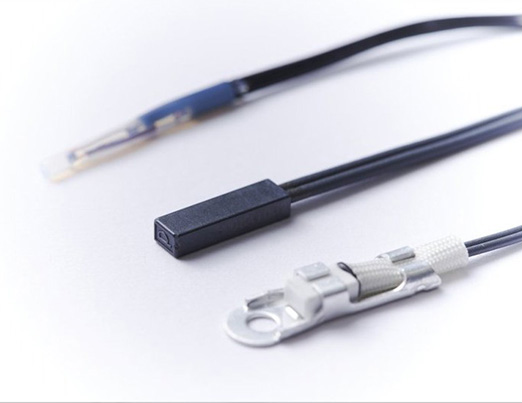

Sensor for Car / HEV

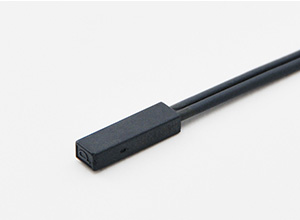

PPS sensor

Feature

- High heat resistance, High insulation, High thermal conductivity by unique PPS resin case.
- High oil resistance (ATF immersion).
- Cost reduction and stable quality by simple structure.

Application

- Motor
- Reactor
- Generator
- PCU（Power control unit）

Specification

Resistance value	R0=30kΩ (example)
B constant	R0/100=3450K
Thermal time constant	About 4 sec (in stirring water)
Operating temperature range	-40℃～200℃
Insulation resistance	≥100MΩ at 500VDC
Withstand voltage	1800VAC for 1sec

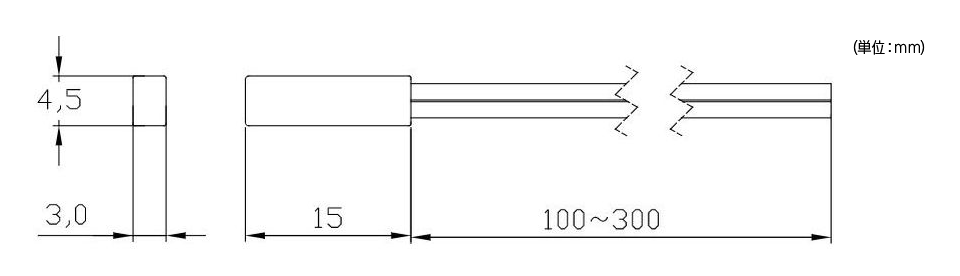

Structures

Inquire about this product.

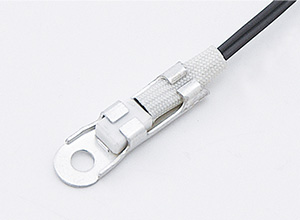

Ring Terminal Sensor

Feature

- High Reliability with High quality thermistor element
- High Thermal Conductivity
- Easy to attach

Application

- HEV
- Solar Power
- New energy Power Management
- Inverters

Specification

Resistance value	R25=10kΩ (example)
B constant	R25/85=3435K (example)
Thermal time constant	About 6 sec (Hot Plate)
Operating temperature range	-40℃～125℃

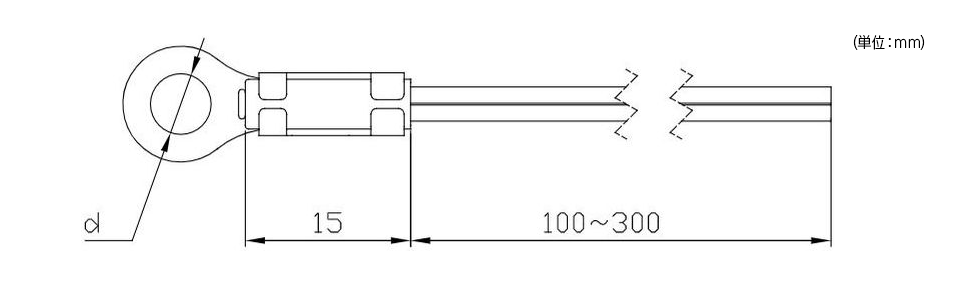

Structures

Inquire about this product.
