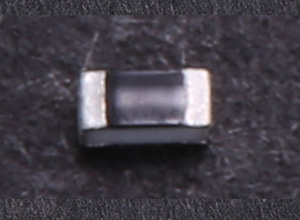

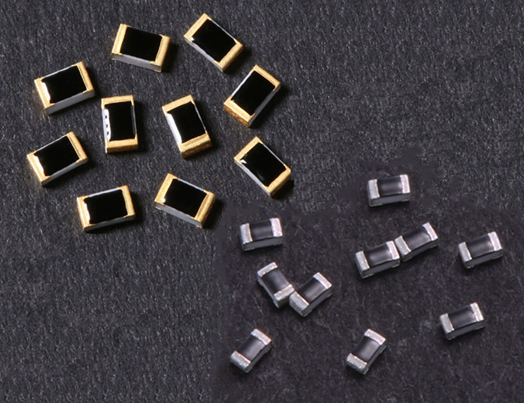

Thick Film Chip Thermistors

Advantages

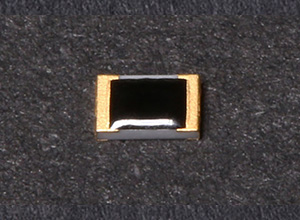

Max temperature of 200℃.
Applicable to conductive adhesives (Au plating).
Adjustable temperature characteristic curve according to your requirements.
AEC-Q200 compliant product.

Advantages

High mechanical strength and reliability are available due to thermistor film and glass-coated structure on alumina substrate.
Thickness does not change on any resistance value.
High solder ability and heat resistance are available due to triple structure electrodes.
UL1434 can be available in some parts.
Some parts can resist in operating temperature range up to 150℃ or higher.
AEC-Q200 is available.
RoHS compliant.
TET is lead-free product.

Advantages

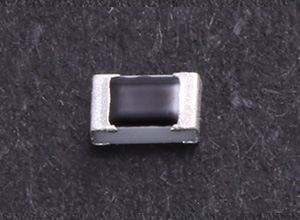

JAXA Qualified parts.
Satellite, Space station,electrical equipment for space.
High mechanical strength and reliability are available due to thermistor film and glass-coated on alumina substrate.
Using solder plating (Pb containing)with an achievement to avoid whisker.
All pcs screening, Lot assurance inspection, & periodic test.

Advantages

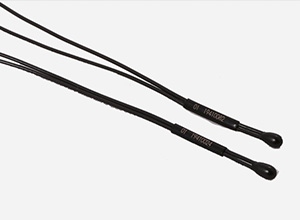

JAXA Qualified parts.
Satellite, Space station,electrical equipment for space.
Usable temperature range -55℃ to 150℃.
Lead wire length can be selected as 80, 500, 1000 mm, and wiring is possible freely.
All pcs screening, Lot assurance inspection, & periodic test.

Advantages

Engineering model is made for the purpose of ground-evaluation.
Engineering model is produced in same production line as in Flight model.
Terminals of Engineering model are made of solder plating (Pb containing) same as Terminals of Flight model.

Advantages

Engineering model is made for the purpose of ground-evaluation.
Engineering model is produced in same production line as in Flight model.
